The diesel filter needs a new element, but the equipment it supplies is still required. Before the maintenance team can act, someone has to answer a question that belongs in the original equipment specification: what happens to the fuel supply during servicing?

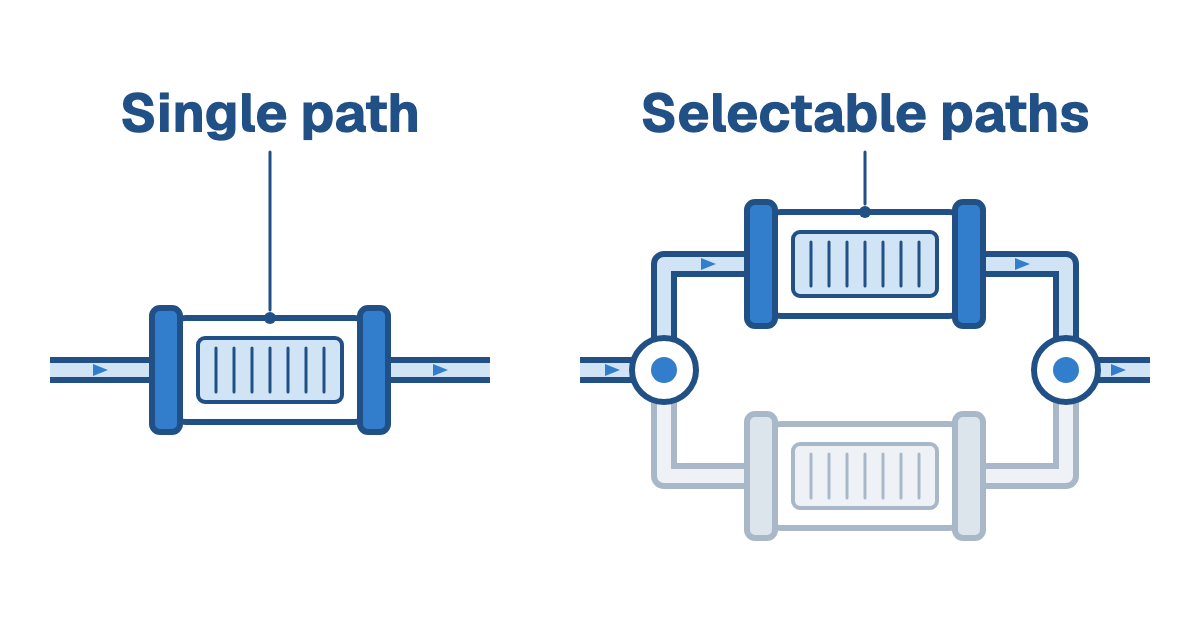

Single and duplex diesel filters offer different arrangements for that job. A single arrangement has one filtering path. A duplex arrangement has selectable filtering sides, so an alternative side can take the duty when the installation and approved procedure permit. Choosing between them means checking the required flow, maintenance window and service access. Two canisters in a photograph do not settle those questions.
Start with the maintenance window
Define when the filter can be taken out of service. For equipment with a planned stop and a workable service window, a single filtering path may meet the requirement. The proposal should explain how the filter will be isolated and maintained within that window, following the equipment manufacturer's instructions.
If the duty must continue during filter maintenance, ask the supplier to demonstrate the alternative fuel path. A duplex assembly can be considered for this requirement, but the complete arrangement matters. The side that remains in service must be suitable for the required duty, and the installation must support the proposed maintenance method.
Put that requirement into the enquiry before comparing prices. A general promise of easy servicing leaves too much undecided for the person who will have to do the work.
Check what each selectable side can handle
Filtertechnik's technical literature provides a useful example in Schroeder's HDPD diesel pre-filter. The datasheet describes filter housings connected through a change-over ball valve. It also states that each side has the number of housings needed to support the specified flow.
That detail changes how a buyer should read the proposal. Duplex does not necessarily mean exactly two individual housings. A higher-flow arrangement may use several housings on each selectable side. Counting the canisters says less than confirming the capacity available when one side is out of service.
Ask the supplier to mark that condition on the flow diagram and identify the relevant model rating. The documented design principle is useful for selection. It does not establish that a particular model is suitable for your engine, installation or fuel.
Separate duplex from two-stage filtration
Two housings can have a different purpose. In a multistage system, fuel passes through successive treatment stages. Filtertechnik's fuel-filtration literature, for example, describes particle pre-filtration followed by a coalescing stage that separates water. Those stages perform different jobs along the fuel path.
A duplex arrangement provides selectable sides. To tell the difference, follow the fuel route on the drawing. Does fuel pass through one stage and then another, or can the system select between filtering sides? Ask what remains available when the particular housing that needs attention is taken out of service.

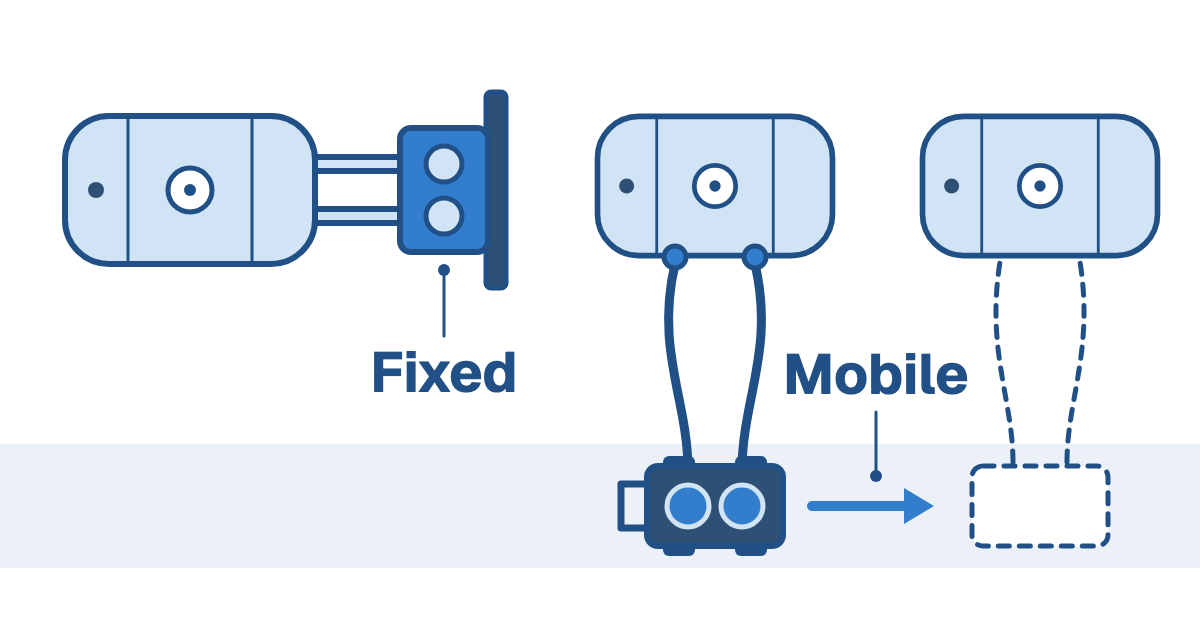

Tank polishing is another separate duty. A polishing unit treats fuel circulated through its own connections; its presence elsewhere on the site does not establish an alternative path through the engine's pre-filter. Our guide to fixed and mobile fuel polishing covers that equipment choice.
Compare the proposed maintenance arrangements
Ask each supplier to answer the same questions. The aim is to establish how the proposed assembly fits the operating duty and the people who will maintain it.
| Selection question | Single arrangement | Duplex arrangement |
|---|---|---|
| What happens during service? | Define the planned interruption or separately provided supply arrangement. | Establish whether the other side can support the duty under the approved procedure. |
| Which capacity matters? | The specified capacity of the filtering path. | The duty each selectable side can carry when the other is unavailable. |
| How is water handled? | Confirm the separation, drain and sensing functions actually included. | Confirm those functions for the selected assembly and both sides. |
| Can the team reach the service points? | Check element-removal space, connections, drain access and indication. | Check access to every housing and the changeover assembly in its installed position. |
Water handling needs its own specification
The documented HDP single-housing family and HDPD duplex family include manual and automatic water-drain configurations. Water sensing and filter-restriction indication are separate selection items. The model details determine which functions are present.
Automatic water draining does not mean automatic selection between filter sides. Nor does a water sensor tell the operator everything about element condition. Ask what each indication reports, where the operator sees it and who responds. The proposal should distinguish automatic functions from the work left to the site team.

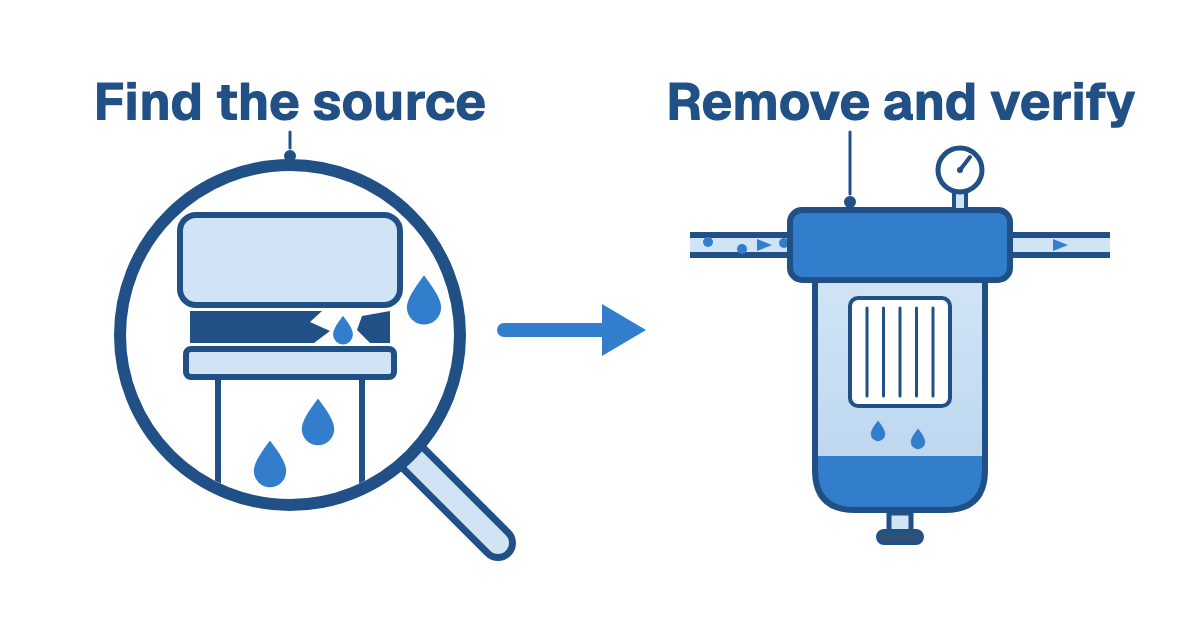

If water keeps appearing, include an investigation of its source. Our guide to water in diesel fuel explains that wider maintenance question. Housing selection alone does not address how water reaches the fuel.
Check the installation against the actual duty
Both cited Schroeder datasheets describe suction-side applications, meaning installation on the side where the pump draws fuel in. Their ratings cannot simply be applied to a pressure-side installation. Ask the supplier to check the proposed location against the fuel-system requirements and the selected filter's operating limits.
Provide the required flow, fuel type, operating temperature and available equipment requirements. Request the selected model's data and installation drawing. A headline maximum for a product family does not establish the rating of every size or configuration in that family.
Review physical access with the maintenance team too. The filter must fit where it will be installed, with access for the actual service tasks. The source datasheets explicitly direct buyers to obtain certified dimensions; an overall product photograph is not an installation drawing.
Give the supplier a complete selection brief
Send the engine or equipment details, required flow, fuel information and a sketch of the supply arrangement. Add the available service window, access photographs and any filter or water findings. State whether the duty must continue during maintenance and ask the supplier to explain how the proposed arrangement meets that requirement.

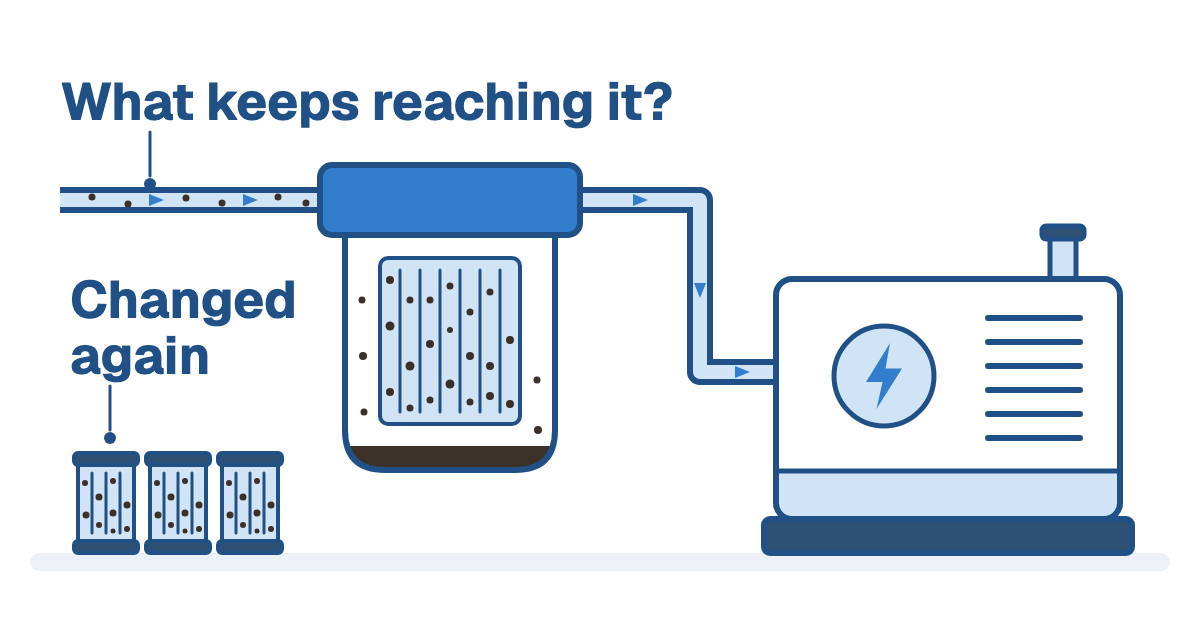

If elements need changing unusually often, investigate the recurring fault alongside the equipment choice. A second selectable side does not identify the source of contamination. See our guide to recurring generator fuel-filter blockage for the records to bring into that investigation.
Use that brief to discuss fuel filtration equipment with NATCOM. The useful result is a filter arrangement with a defined duty and a maintenance plan the site team can carry out.
Adham Lotfy is NATCOM's Fuel Polishing Sales Engineer and a mechanical engineering graduate of the American University in Cairo. His background includes technical sales at Swagelok North Africa and industrial sales at Air Liquide.
Frequently asked questions
That depends on the selected assembly, the capacity of the side remaining in service, the installation and the manufacturer's approved procedure. A duplex label alone is not permission to open or service a housing while the engine runs. Have the supplier and site team establish the actual maintenance arrangement.
Two filters in series may perform successive treatment stages, such as particle removal followed by water coalescing. A duplex arrangement provides selectable filtering sides. Ask for the flow diagram to establish which arrangement a proposal contains.
No. Schroeder's HDPD datasheet specifies the number of housings needed on each side for the stated flow. Some documented configurations therefore have multiple housings per side. Confirm the duty that each selectable side can handle.
No. Water draining, water sensing, filter-restriction indication and selection between filtering sides are different functions. Ask the supplier to identify which are included in the proposed model and which tasks remain with the site team.
A second selectable side changes the maintenance options. It does not identify or remove the source of repeated contamination. Review the fuel, tank, transfer route and filter findings separately if elements need attention unusually often.
